Description
Pro Display XDR - Standard glass
Finish
Standard glass
Nano-texture glass
Display
Retina 6K display
32-inch (diagonal) IPS LCD display with oxide TFT technology
- Resolution: 6016 by 3384 pixels (20.4 million pixels) at 218 pixels per inch
- Aspect ratio: 16:9
XDR (Extreme Dynamic Range)
- Brightness: 1,000 nits sustained (full screen), 1,600 nits peak1
- Contrast ratio: 1,000,000:1
- Colour: P3 wide colour gamut, 10-bit depth for 1.073 billion colours
-
SDR brightness: 500 nits -
Viewing angle: Superwide angle with high-fidelity colour and contrast at 89º left, 89º right, 89º up, 89º down
Fully laminated; 1.65 per cent reflectivity (typical)
Superwide
viewing angle
Technology
- 2D backlighting system using 576 full-array local dimming zones
- Apple-designed timing controller (TCON) chip engineered to precisely control high-speed modulation of both 20.4 million LCD pixels and 576 LEDs in backlight for seamless synchronisation
- True Tone technology with a dual ambient light sensor (ALS) design to ensure an accurate viewing experience in any ambient lighting condition
Software Features
The following features require macOS Catalina 10.15.2 or later:
- Reference mode selection
- Reference status indicator
- Brightness control
- Portrait/landscape detection
- Night Shift
- True Tone
- Dolby Vision, HDR10 and Hybrid-Log Gamma (HLG) playback support
- User-defined reference modes (coming soon)
- User calibration (coming soon)
Size and Weight
71.8 cm
28.3 inches
41.2 cm
16.2 inches
2.7 cm
1.1 inches
- Width: 71.8 cm (28.3 inches)
- Height: 41.2 cm (16.2 inches)
- Depth: 2.7 cm (1.1 inches)
- Weight: 7.48 kg (16.49 pounds)2
Pro Stand
Height of display with stand,
landscape, top position
65.3 cm
25.7 inches
Height of display with stand,
landscape, bottom position
53.3 cm
21.0 inches
Height of display with stand,
portrait, top position
80.6 cm
31.7 inches
Depth of display
with stand
23.6 cm
9.3 inches
Width
of stand
18.0 cm
7.1 inches
- Height adjustment: The system allows for a total height adjustment of 120 millimetres (60 millimetres in each direction from the midpoint)
- Orientation: Landscape or portrait
- Tilt: –5° to +25°
Display with stand size and weight
- Depth (tilt 25°): 27.8 cm (10.9 inches)
- Weight: 11.78 kg (25.99 pounds)2
- Landscape orientation
- Width: 71.8 cm (28.3 inches)
- Height in top position: 65.3 cm (25.7 inches)
- Height in bottom position: 53.3 cm (21.0 inches)

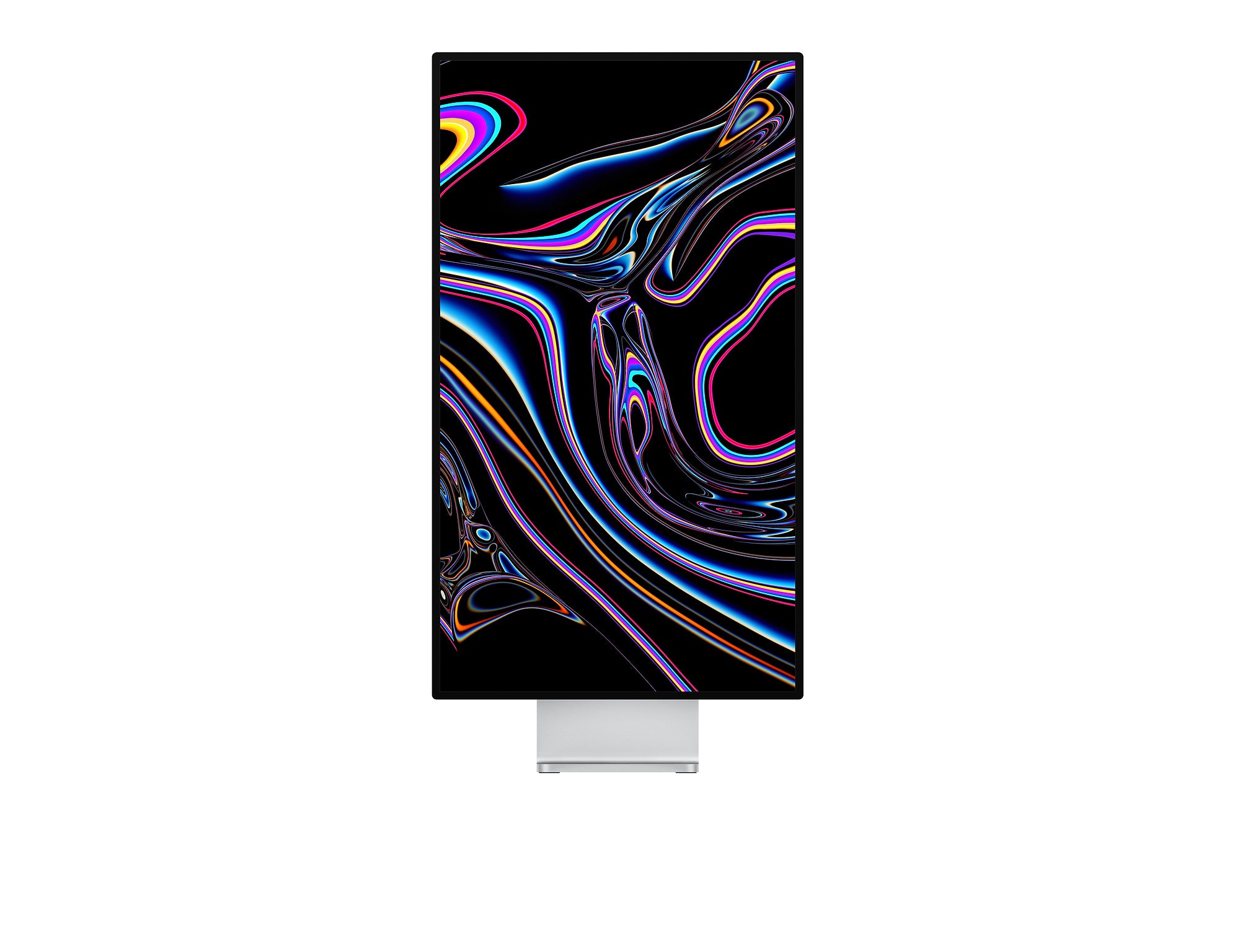

- Portrait orientation
- Width: 41.2 cm (16.2 inches)
- Height in top position: 80.6 cm (31.7 inches)
Stand size and weight
- Width: 18.0 cm (7.1 inches)
- Height (arm 0º, tilt 0º): 43.3 cm (17.0 inches)
- Depth: 23.6 cm (9.3 inches)
- Height (arm 45º, tilt 25º): 49.7 cm (19.6 inches)
- Weight: 4.3 kg (9.5 pounds)
Attach and detach
Effortlessly attaches and detaches for quick and easy transportation. The puck-shaped magnetic connector is designed to attach to the back of the display and locks Pro Stand and the display together. To detach, simply unlock the slider and tilt the display far back to release the magnets, then lift the display off Pro Stand.
VESA Mount Adapter
11.9 cm
4.7 inches
Size and weight
- Width: 11.9 cm (4.7 inches)
- Height: 11.9 cm (4.7 inches)
- Depth: 1.83 cm (0.72 inch)
- Weight: 0.28 kg (0.62 pound)2
Attach
An easy-to-attach alternative to Pro Stand. With a similar design to the magnetic connector on Pro Stand, it can be placed and secured quickly and easily using the included Apple-designed tool.
Compatible with a 100-by-100-mm VESA stand or mount.
Connections
Power
Thunderbolt 3 (USB-C) port
USB-C ports
One Thunderbolt 3 (USB-C) port, three USB-C ports
- One upstream port for Mac Pro or other Thunderbolt 3 host (96W host charging)
- Three USB-C (USB 2) ports for charging or syncing
Compatibility
Pro Display XDR is compatible with the following Mac models running macOS Catalina 10.15.2 or later:
- Mac Pro (2019) with MPX Module GPUs
- 15-inch MacBook Pro (2018 or later)
- 16-inch MacBook Pro (2019)
- 21.5-inch iMac (2019)
- 27-inch iMac (2019)
- MacBook Air (2020)
- Any Mac model with Thunderbolt 3 ports paired with Blackmagic eGPU or Blackmagic eGPU Pro
In the Box
- Pro Display XDR
- Power cord (2 m)
- Apple Thunderbolt 3 Pro Cable (2 m)
- Polishing cloth
Electrical and Operating Requirements
- Line voltage: 100–240V AC
- Frequency: 50Hz to 60Hz, single phase
- Operating temperature: 10° to 35° C (50° to 95° F)
- Relative humidity: 5% to 95% noncondensing
- Maximum altitude: Tested up to 5,000 metres (16,400 feet)
